Acemagic K5 review: Intel's new chip is a triumph, but this PC is a letdown
Intel's latest low-power processor, the Core 5 320 (codenamed Wildcat Lake), is a genuine leap forward for compact computers. But the Acemagic K5, the first mini PC to ship with it, is hamstrung by a miserly PCIe lane budget and a launch price that puts it in the firing line of far better-equipped rivals. At $559, this is a machine that promises much yet delivers too little for the money.
The K5 is built around Intel's first mainstream 18A process chip, a six-core design with two performance cores and four efficiency cores, boosting up to 4.6GHz. It offers up to 40 TOPS of AI throughput across the platform, with the NPU alone good for 16 TOPS. That puts local AI tasks like background blur and transcription within reach, though it falls short of the 47 TOPS needed for full Copilot support.
Memory is LPDDR5 at 6400MT/s, a welcome upgrade over the LPDDR4X of older Acemagic boxes, but it is soldered down. The 16GB fitted is all you will ever have. Storage comes via two M.2 slots, but both are limited to PCIe 4.0 x2, and the included drive is a Gen3 model that barely exceeds 1800MB/s read and write. That is a cost-saving too far, and it undermines the whole system.
What is the Acemagic K5?

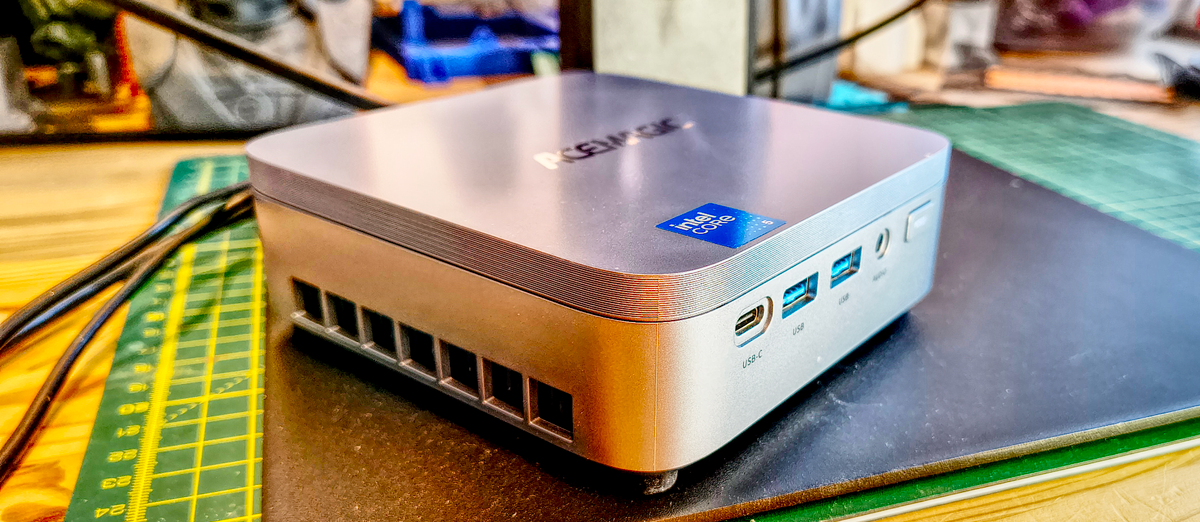

The K5 is a compact mini PC, measuring just 128 by 128 by 41.3mm, designed for office work, light content creation and everyday computing. It is powered by Intel's new Core 5 320 processor, which replaces the older N100, N150 and N300 chips in Intel's low-power lineup. The machine runs Windows 11 Pro and comes with 16GB of LPDDR5 memory and a 512GB SSD.
The chassis is mostly plastic, which keeps the weight down and makes it easy to mount behind a monitor with the included VESA bracket. The TDP is rated at 25W, so it should run quietly and cheaply. Access to the internals is possible via a rear switch, but you will need a screwdriver to remove a heat-spreading plate before reaching the M.2 slots.
How does the K5 perform?
In benchmarks, the Core 5 320 is a revelation. Its single-core performance beats the Intel Core Ultra 5 125H, and its graphics outperform the Core i7 12650H. Compared to the old N150 platform, it is in a different league, roughly doubling aggregate capability thanks to higher clocks and dedicated performance cores.
But the PCIe lane budget is the catch. Intel gave Wildcat Lake only six PCIe 4.0 lanes, compared to nine PCIe 3.0 lanes on the Alder Lake-N series it replaces. That is a 33% bandwidth increase, but it is still woefully short. A typical AMD Ryzen 5 mobile CPU has 20 lanes, which is 66% more actual bandwidth.
This shortage means the M.2 slots are limited to two lanes each, and the 2.5GbE LAN port and seven USB ports eat into the remaining bandwidth. The result is that the system drive runs at less than half its potential speed. Acemagic compounded the problem by fitting a Gen3 drive, which tops out at around 1800MB/s. A Gen4 drive would have been twice as fast, even with only two lanes.
What are the alternatives to the K5?
At $559, the K5 is not cheap. For $459.99, the GMKtec M6 Ultra Mini PC offers an AMD Ryzen 5 7640HS with six cores and 12 threads, dual Gen4 x4 M.2 slots, USB4, dual 2.5GbE LAN ports and upgradeable SODIMM DDR5 memory up to 128GB. That is a far better specification for less money.
Beelink has the EQ mini, which uses the Wildcat Lake Core 3 304 with 12GB of RAM and 512GB of storage for $429, though that chip has only five cores and less AI and graphics power. ASRock also offers the Industrial NUC BOX-320, but it is a quote-only solution aimed at business buyers.
Should you buy the Acemagic K5?
Buy it if you want a quiet, low-power machine for office work and you are not bothered by storage speeds. The K5 is a solid performer for browsing, spreadsheets and light content creation, and the new Intel chip is a genuine step forward.
Don't buy it if you need fast storage, USB4 or any upgrade path. The soldered memory and limited PCIe lanes make this a dead end, and the launch price is simply too high for what you get. Wait for Wildcat Lake systems to mature, or look at AMD alternatives.
Why is the K5 so frustrating?
The frustration lies in Intel's design choices. The Core 5 320 is a punchy little chip, but Intel deliberately limited its PCIe lanes to protect its Core Ultra line. That means no USB4, no Gen4 x4 slots, and no room for expansion. It is a classic case of a good product being kneecapped to serve a corporate strategy.
Acemagic did what it could with the platform, but the Gen3 drive was a mistake. At a lower price, say $400, the K5 would be a reasonable buy. At $559, it is competing with far better machines, and it loses.
The K5 is a glimpse of a promising future, but it is not the machine to buy today. Intel's Wildcat Lake is a triumph; the Acemagic K5 is a letdown.
