British engineers have unveiled a new method for designing microscopic chip components that could give the UK a quiet but decisive edge in the global race for semiconductor self-sufficiency. The technique, published in the journal Nature on 19 October 2026, uses artificial intelligence to design the tiny, path-like structures inside microelectromechanical systems (MEMS) with unprecedented precision and reliability.
MEMS devices are the unseen workhorses of modern technology, found in everything from car airbags and medical sensors to smartphones and aerospace systems. Their performance hinges on microscopic structures, such as serpentine heaters or suspension springs, whose geometry is defined by a continuous path. Getting these paths right is a painstaking process, historically reliant on trial and error and the experience of skilled engineers.
The new research, from a team at a British university, changes that. It replaces the traditional template-based approach, which is limited to tweaking a few parameters, with a generative AI system that can explore a vast design space while automatically respecting the strict rules of microfabrication. The result is a method that not only produces better designs but ones that are guaranteed to be manufacturable from the outset, a critical factor for any nation looking to rebuild its domestic chip industry.
A Sovereign Capability in a Strategic Industry
For too long, the UK has been a spectator in the global semiconductor supply chain, watching as production and design leadership shifted to Taiwan, South Korea, and the United States. The government's National Semiconductor Strategy, launched in 2023, acknowledged this vulnerability and pledged to secure the UK's position in areas where it can lead, particularly in design and compound semiconductors.
This breakthrough is precisely the kind of sovereign capability that strategy was meant to foster. By embedding the rules of manufacturing directly into the generative process, the new method bypasses a 'manufacturability gap' that has long plagued AI-driven design. Previous attempts to use AI for MEMS often produced abstract, pixelated shapes that were theoretically optimal but practically impossible to etch onto a silicon wafer. The new framework, however, generates only designs that are physically realizable, a crucial step for moving from academic curiosity to industrial application.
The implications are significant. A more efficient, AI-driven design loop could dramatically shorten the development cycle for new sensors and actuators, allowing British firms to innovate faster and compete more effectively against larger, state-backed competitors abroad. It is a pragmatic, engineering-led advance, typical of the UK's strengths in high-value, low-volume manufacturing.
How the AI Framework Works

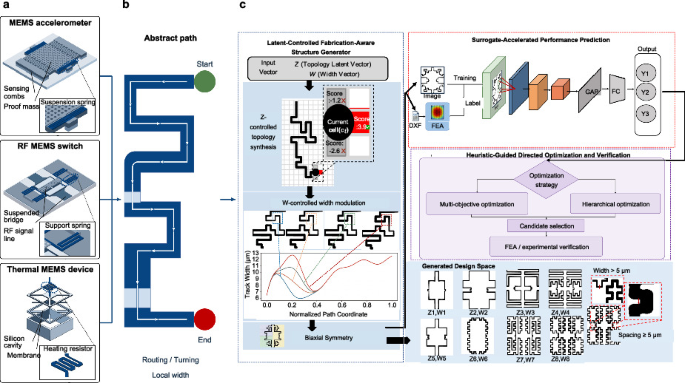

At its core, the new method uses a two-part AI system. First, a generative model translates a compact set of control variables into a physical layout. This model is trained to follow all the rules of photolithography, such as minimum line widths and spacing, so every design it produces is valid. Second, a convolutional neural network (CNN) acts as a surrogate model, rapidly predicting how a given design will perform thermally or mechanically without needing time-consuming finite-element simulations.
The researchers validated their approach on two distinct devices: a thermal micro-heater and a mechanical micro-spring. For the micro-heater, the AI-optimized design reduced temperature variation by over 75% and increased the area of uniform heating from 41% to nearly 100%, according to Nature. For the micro-spring, it increased displacement by over 30% while reducing peak stress by 16%.
This ability to optimize across different physical domains using the same underlying representation is a powerful demonstration of the framework's generality. It suggests the method could be adapted to a wide range of MEMS devices, from inertial sensors for navigation to RF switches for advanced communications.
The Global Context: A Race for AI-Driven Innovation
The breakthrough comes as research groups worldwide are racing to apply AI to materials science and engineering. Just last week, an arXiv paper outlined a new method for generating graphs with exact topological properties, a key challenge in AI-driven design. Similarly, a recent article in MDPI's Energies journal highlighted the need for an integrated 'Generative AI Engine' to accelerate the development of energy materials. The British work stands out by focusing on the specific, high-value challenge of manufacturable MEMS design.
Unlike some of these broader efforts, which remain largely theoretical, the UK research has been validated experimentally. The team fabricated both the original and optimized micro-heaters and compared them using infrared thermography, confirming that the AI-designed version performed as predicted. This level of rigorous, end-to-end validation is what separates a promising academic result from a technology that can be adopted by industry.
A Pragmatic Path Forward
For a nation that has long excelled at fundamental science but often struggled to commercialize it, this approach is encouraging. It is not a moonshot, but a practical tool that solves a real-world problem. It plays to the UK's strengths in software, AI, and precision engineering, rather than trying to compete in the capital-intensive business of high-volume chip fabrication.
The next step will be to see if this method is taken up by British companies and foundries. If it is, it could help secure a niche for the UK in the global semiconductor ecosystem, one built not on mass production, but on the kind of smart, sovereign innovation that the country's industrial strategy has promised. As the global competition for technological supremacy intensifies, such pragmatic advances will be the true measure of a nation's resilience.
